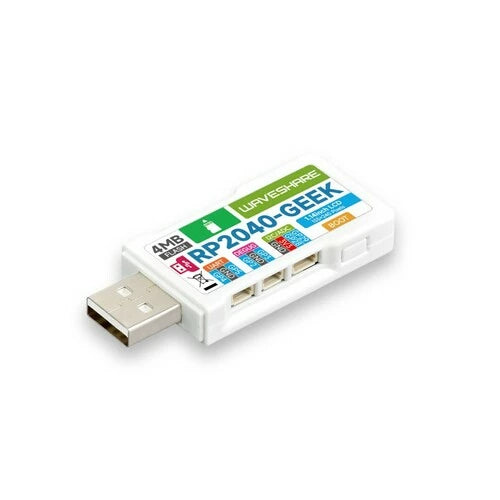

Waveshare RP2040-GEEK Development Board, Based On RP2040 Microcontroller, With 1.14inch 65K Color LCD
Waveshare RP2040-GEEK Development Board, Based On RP2040 Microcontroller, With 1.14inch 65K Color LCD is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .
The Fastest Shipping
The Fastest Shipping
We ship faster because we built our own shipping 🤖 robot.
Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.
You can view shipping options and pricing at checkout without logging in.
For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.
We deliver across Australia, and here are the options (based on your location; view them on the cart page):
- Standard Post: Starting at $7 (6+ business days, with tracking)
- Express Post: Starting at $11 (2+ business days, with tracking)
- Same Day Delivery: Available for Sydney orders.
- Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.
A versatile RP2040-based development tool that combines a debugger, USB-to-UART bridge, and I2C tester in one compact device. Features a built-in 1.14" colour LCD for status display and comes in a protective plastic case with cables included.
Perfect for debugging Raspberry Pi Pico and other ARM-based microcontrollers via the standard CMSIS-DAP interface. Works with OpenOCD and other common debugging tools.
Key Features
- CMSIS-DAP Debugger – Debug most ARM microcontrollers via 3-pin SWD port
- USB-to-UART Bridge – 3-pin serial connection for console access
- I2C Test Port – 4-pin header for I2C device testing
- 1.14" LCD Display – 240×135 pixel 65K colour IPS screen for status
- TF Card Slot – Supports SDIO and SPI communication
- USB-A Connector – Plugs directly into your computer
- Open-Source Firmware – Easily upgrade or customise
Onboard Components
- Processor – RP2040 microcontroller
- Flash – W25Q32JVSSIQ 4MB NOR-Flash
- Display – 1.14" IPS LCD (240×135, 65K colours)
- Ports – USB-A, SWD (3-pin), UART (3-pin), I2C (4-pin)
- Storage – TF/microSD card slot
- Button – BOOT button for firmware updates
Ideal For
- Debugging Raspberry Pi Pico projects
- Serial console access to embedded devices
- I2C device testing and scanning
- Learning ARM debugging workflows
Package Contents
- 1× RP2040-GEEK with plastic case
- Connecting cables
